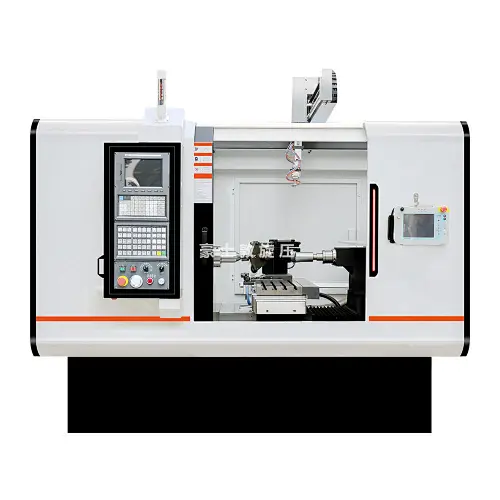

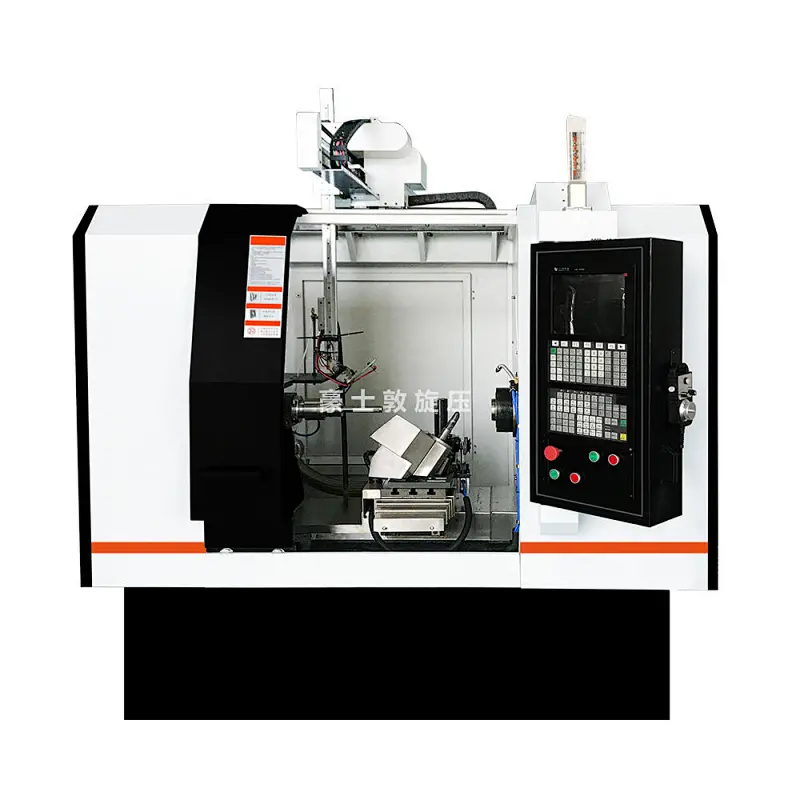

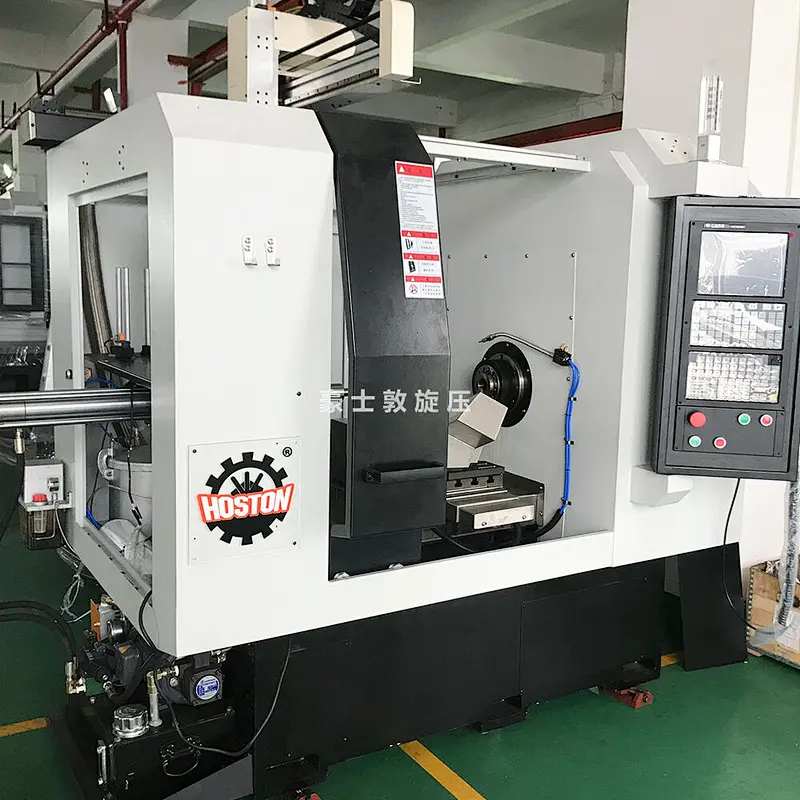

High Speed Precision Single Roller CNC Metal Spinning Machine

High Speed Precision Single Roller CNC Metal Spinning Machine

High Speed Precision Single Roller CNC Metal Spinning Machine

High Speed Precision Single Roller CNC Metal Spinning Machine

High Speed Precision Single Roller CNC Metal Spinning Machine

High Speed Precision Single Roller CNC Metal Spinning Machine

High Speed Precision Single Roller CNC Metal Spinning Machine

High Speed Precision Single Roller CNC Metal Spinning Machine

High Speed Precision Single Roller CNC Metal Spinning Machine

High Speed Precision Single Roller CNC Metal Spinning Machine

High Speed Precision Single Roller CNC Metal Spinning Machine

High Speed Precision Single Roller CNC Metal Spinning Machine

Model NO.: WLL-SRS650B

Quantity:

Product Description
Application Description

Parameter	WLL-SRS350	WLL-SRS450	WLL-SRS650B
Max. Diameter of Material	350mm	450mm	650mm
Main Motor Power	3.7kw servo	4kw servo	4.5kw servo
X Travel	300mm	300mm	300mm
Z Travel	380mm	480mm	480mm
Spindle Speed	4000rpm	4000rpm	4000rpm
Tailstock Force	10kn	15kn	15kn
Travel of Taistock	300mm	300mm	300mm
Amount of Tools	2+1/optional	2+1/optional	2+1/optional
Thickness of Work Piece (Al, Cu)	0.5-2mm	0.5-2mm	0.5-2mm
Thickness of Work Piece (C.S)	0.5-1.2mm	0.5-1.2mm	0.5-1.2mm
Thickness of Work Piece (SS)	0.5-1mm	0.5-1mm	0.5-1mm

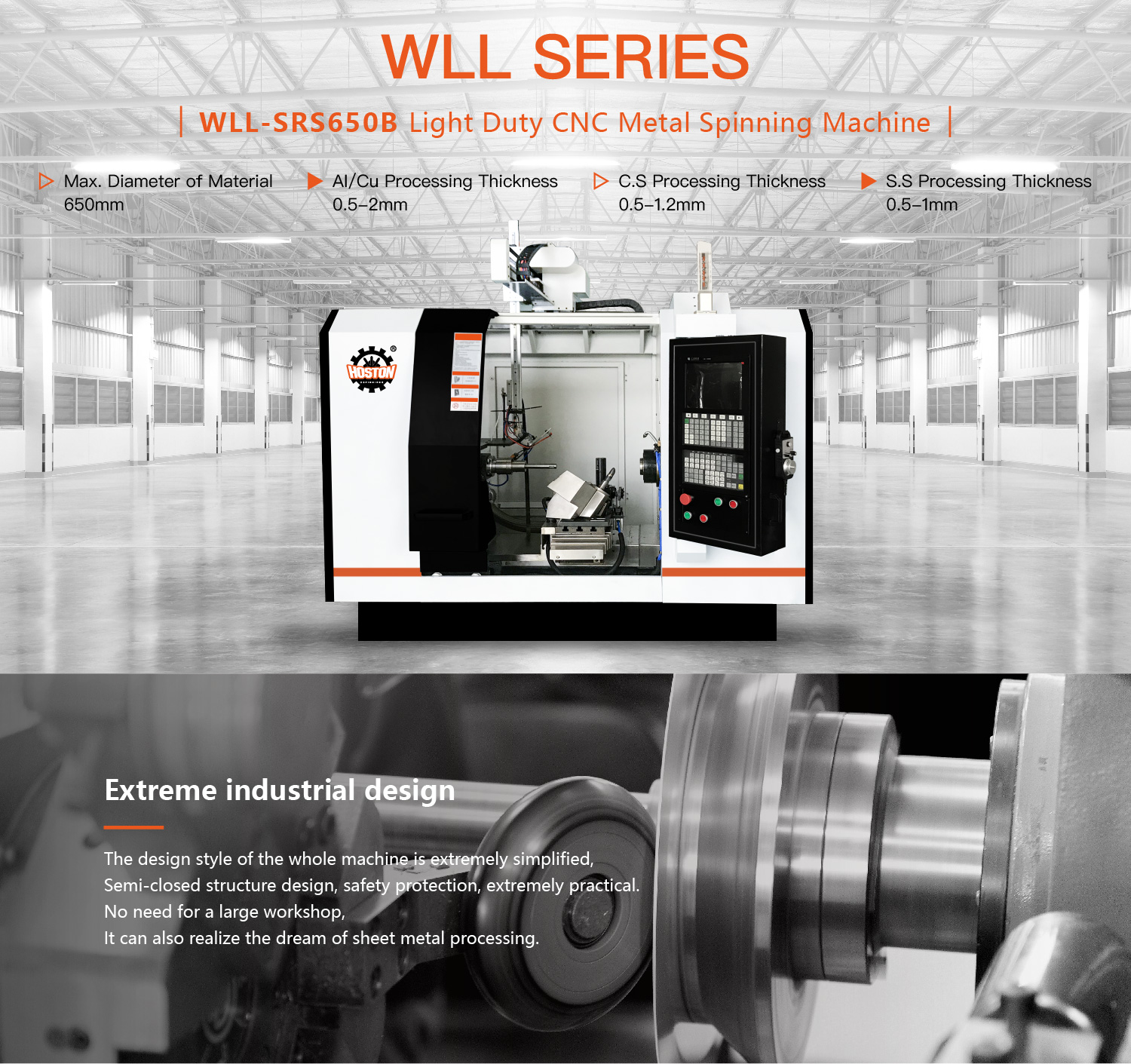

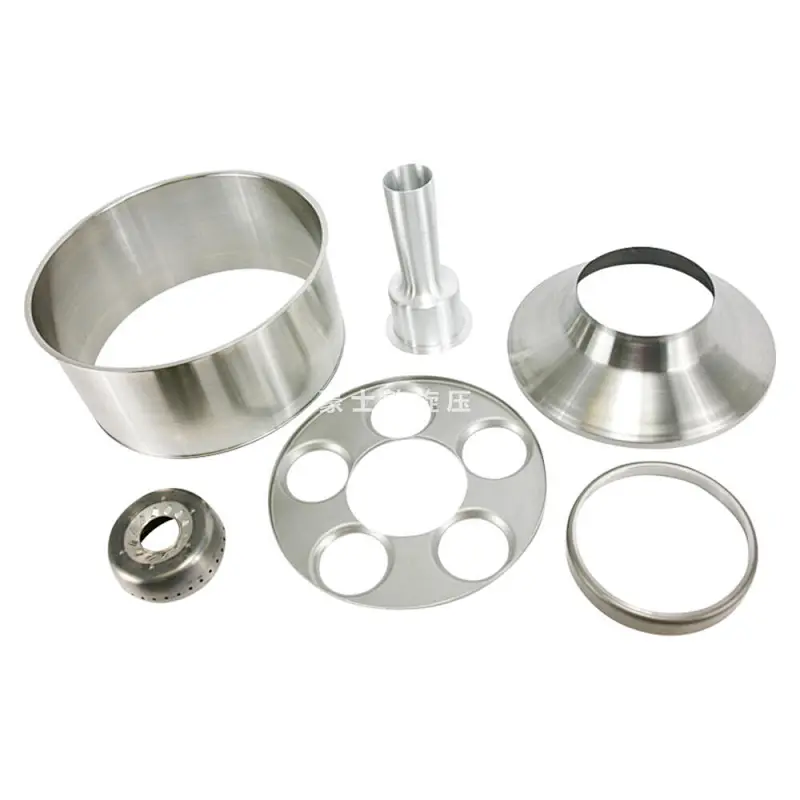

The light duty WLL series CNC metal spinning machine is specially developed to meet the needs of small spinning parts in mobile lighting, commercial lighting, cookware, hardware, handicrafts, air conditioners, automobiles and other industries.

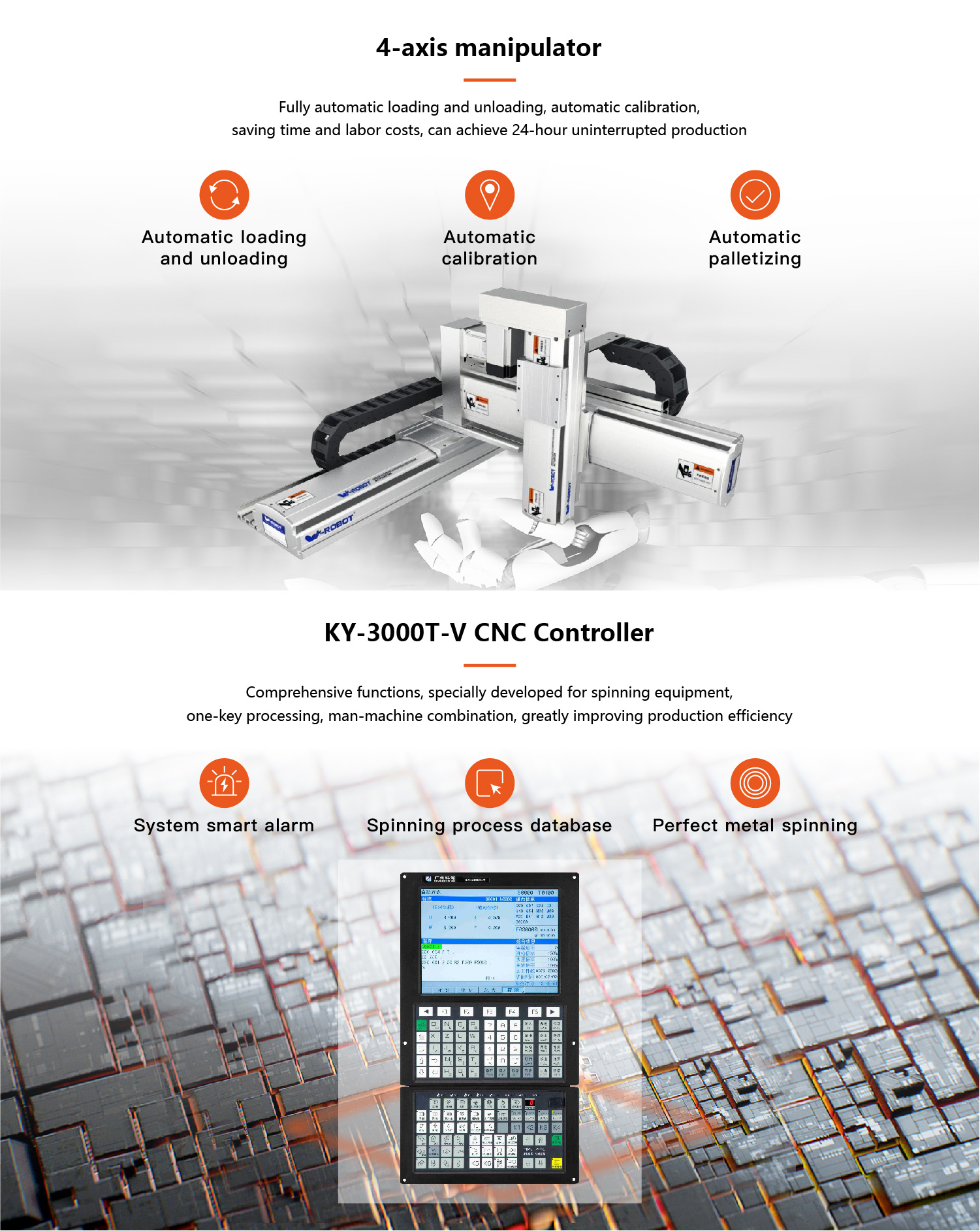

It could also be equipped with manipulator which could do the automatic loading and unloading.

The machine is very stable with mature technology and now is highly recognized by customers from all over the world.
