Model NO.
WLL-SRS350
Quantity:

Parameter

WLL-SRS350

WLL-SRS450

WLL-SRS650B

Max. Diameter of Material

350mm

450mm

650mm

Main Motor Power

3.7kw servo

4kw servo

4.5kw servo

X Travel

300mm

300mm

300mm

Z Travel

380mm

480mm

480mm

Spindle Speed

4000rpm

4000rpm

4000rpm

Tailstock Force

10kn

15kn

15kn

Travel of Taistock

300mm

300mm

300mm

Amount of Tools

2+1/optional

2+1/optional

2+1/optional

Thickness of Work Piece (Al, Cu)

0.5-2mm

0.5-2mm

0.5-2mm

Thickness of Work Piece (C.S)

0.5-1.2mm

0.5-1.2mm

0.5-1.2mm

Thickness of Work Piece (SS)

0.5-1mm

0.5-1mm

0.5-1mm

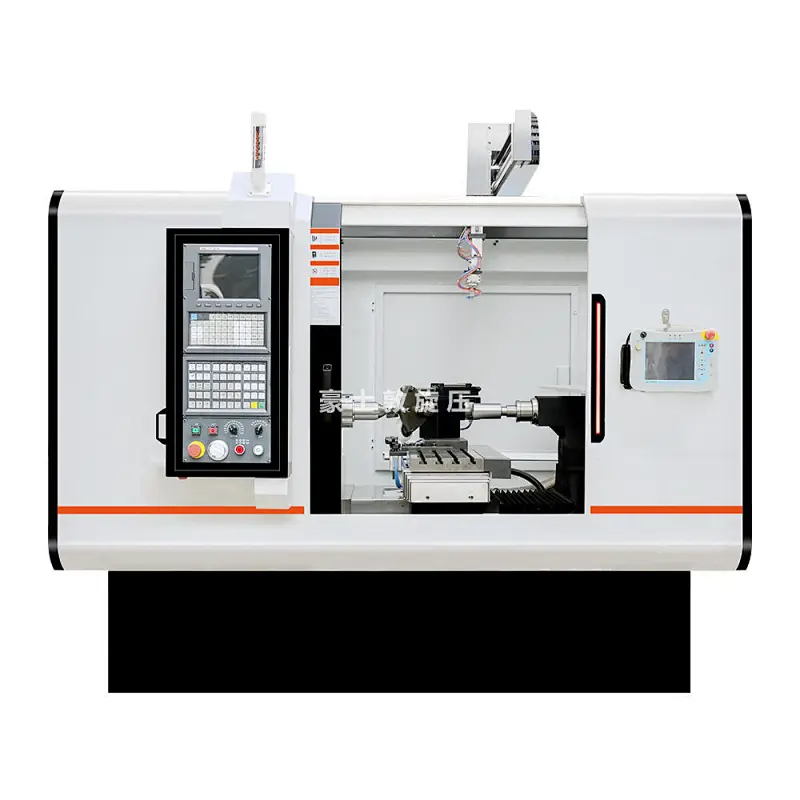

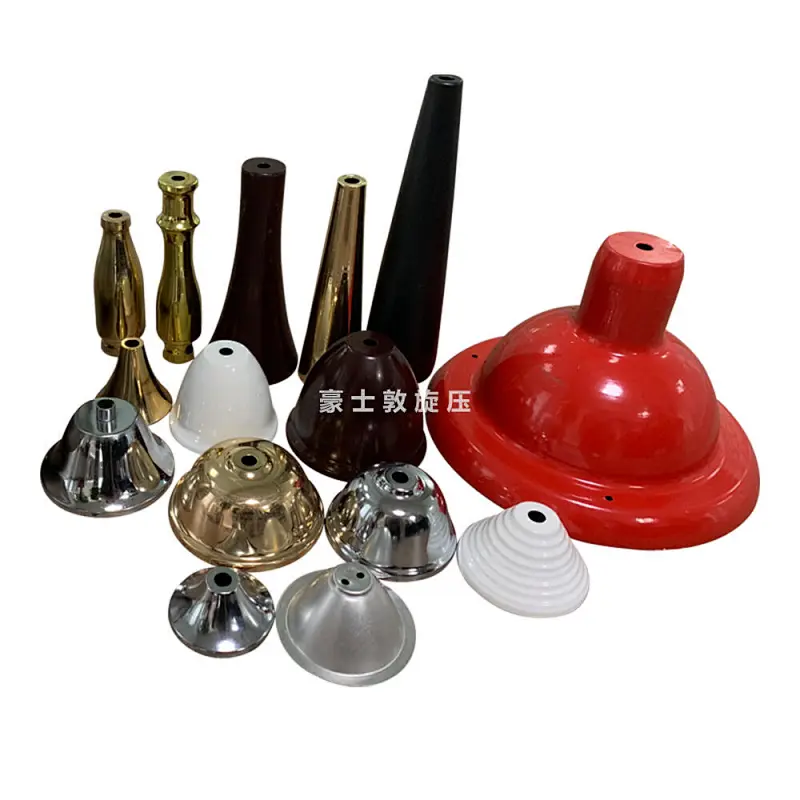

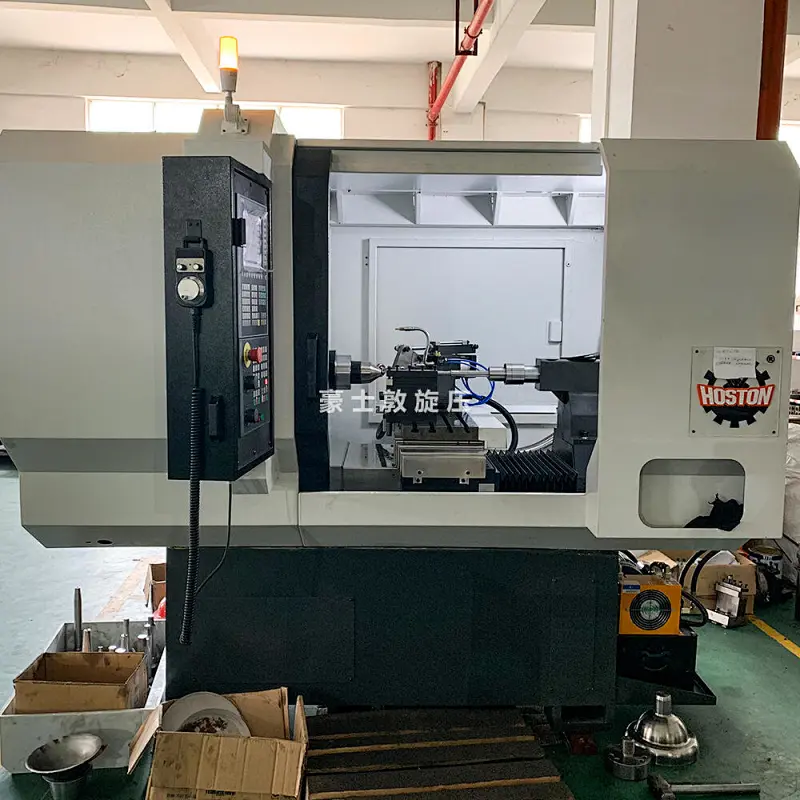

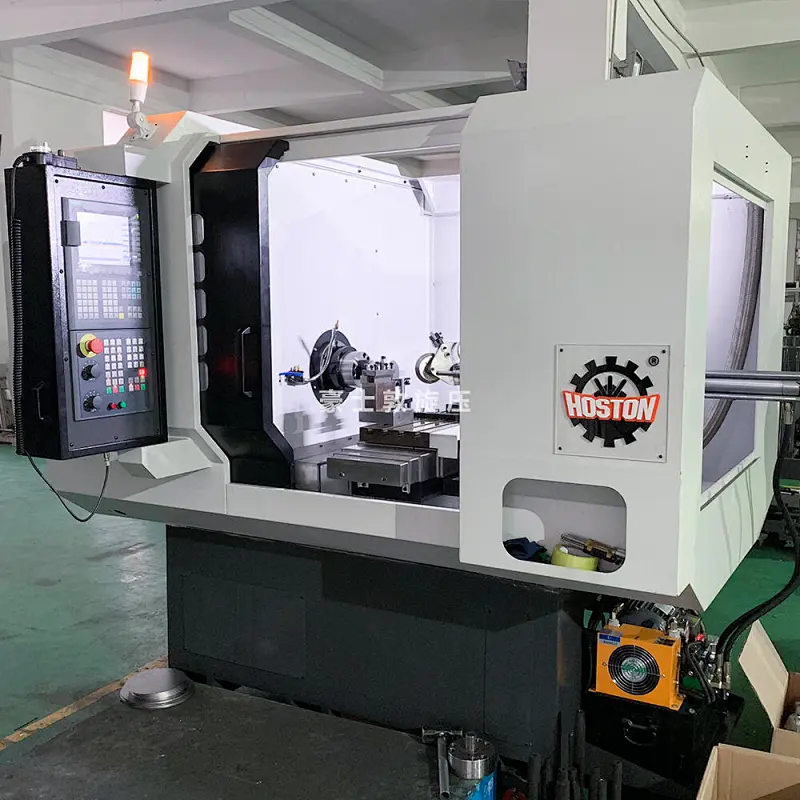

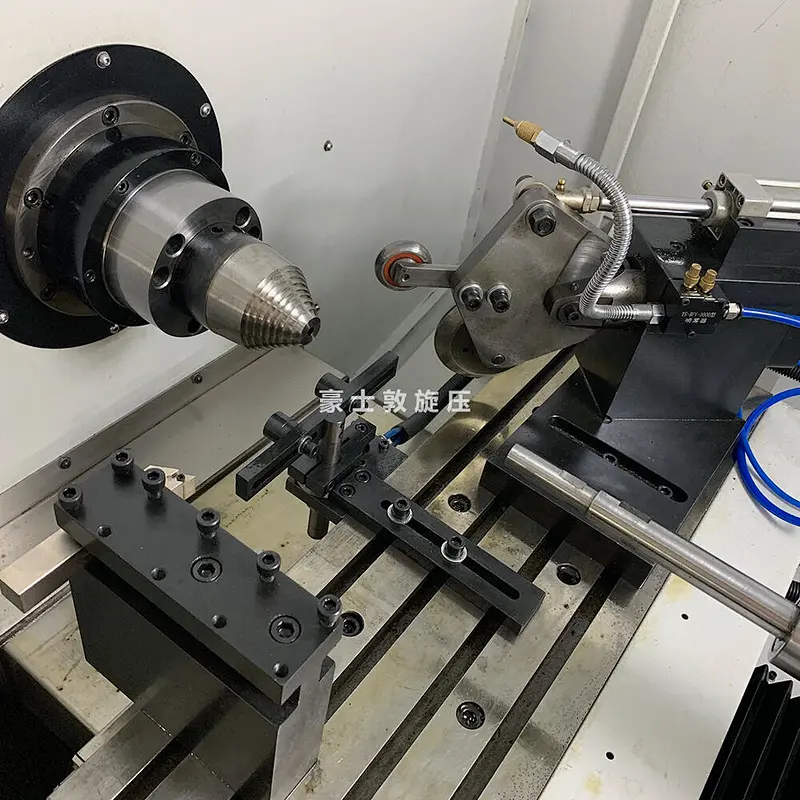

The light duty WLL series CNC metal spinning machine is specially developed to meet the needs of small spinning parts in mobile lighting, commercial lighting, cookware, hardware, handicrafts, air conditioners, automobiles and other industries.


It could also be equipped with manipulator which could do the automatic loading and unloading.


The machine is very stable with mature technology and now is highly recognized by customers from all over the world.
