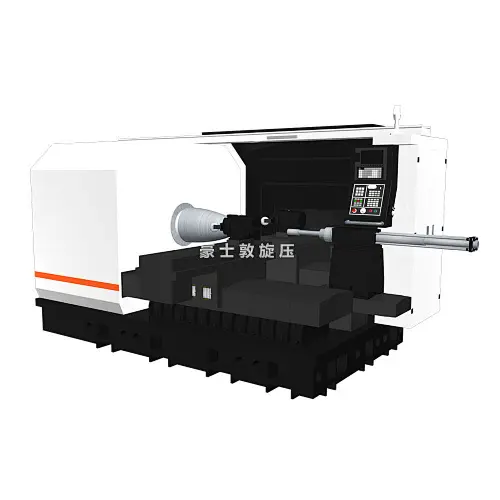

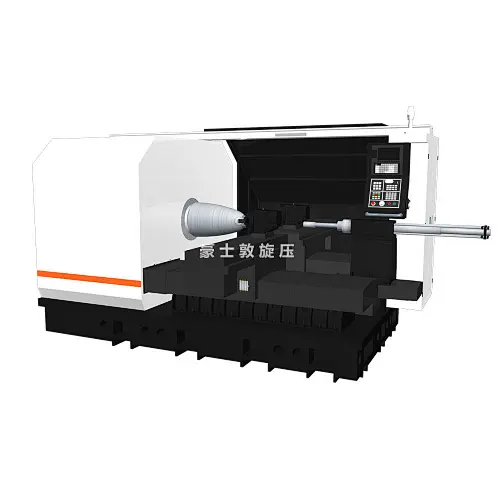

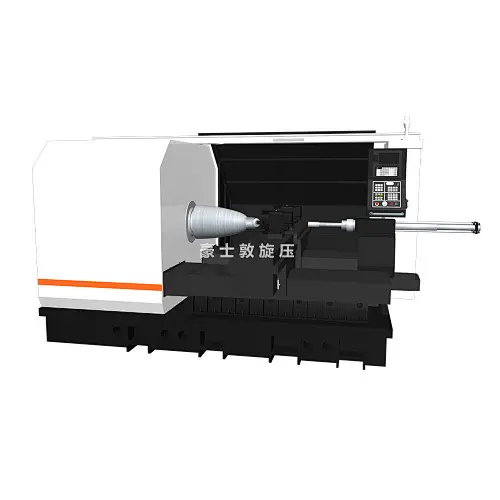

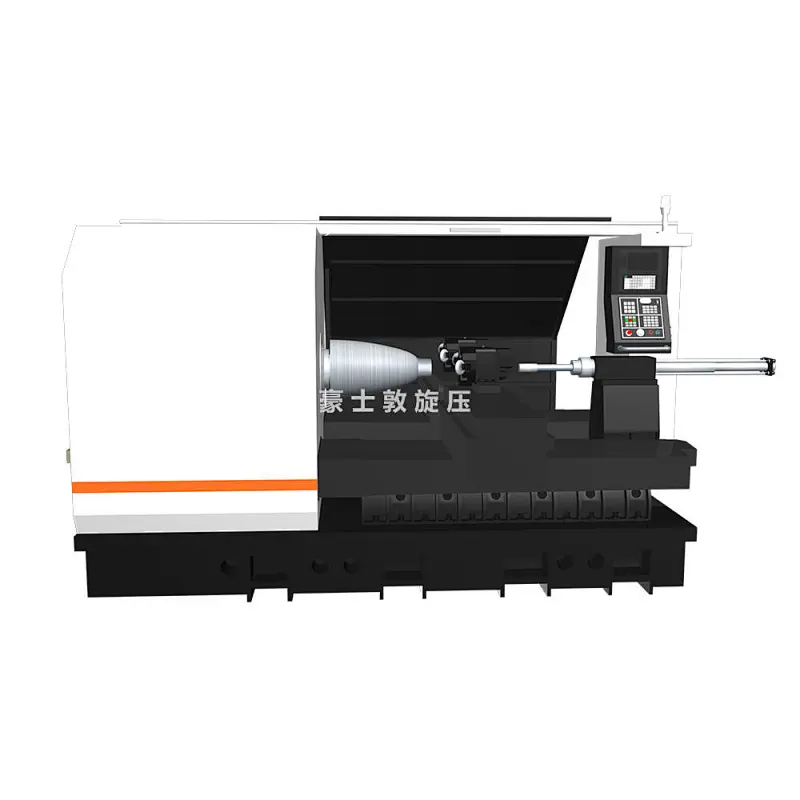

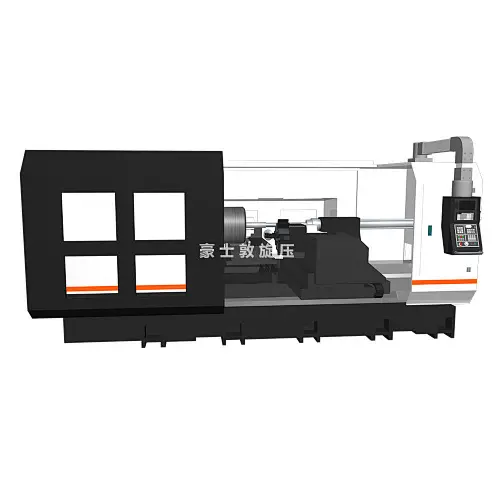

Heavy Duty High Performance Double Roller CNC Metal Spinning Machine

Heavy Duty High Performance Double Roller CNC Metal Spinning Machine

Heavy Duty High Performance Double Roller CNC Metal Spinning Machine

Model NO.: WLH-DRS2550
Minimum order quantity:: 1

Quantity:

Product Description

Parameter	WLH-DRS650	WLH-DRS850	WLH-DRS1050	WLH-DRS1250	WLH-DRS1550	WLH-DRS2050	WLH-DRS2550	WLH-DRS3550
Max. Diameter of Material	650mm	850mm	1050mm	1250mm	1550mm	2050mm	2550mm	3550mm
Main Motor Power	15kw servo	18.5kw servo	22kw servo	22kw servo	35kw servo	55kw servo	75kw servo	100kw servo
X Travel	650mm	800mm	610mm	680mm	500mm	700mm	800mm	980mm
Z Travel	450mm	700mm	780mm	750mm	1000mm	1200mm	1280mm	1480mm
Tailstock Force	20kn	20kn	30kn	45kn	50kn	110kn	120kn	150kn
Travel of Taistock	500mm	500mm	580mm	800mm	1000mm	1100mm	1200mm	1200mm
Amount of Tools	6+6	6+6	6+6	6+6	8/optional	8/optional	8/optional	8/optional
Thickness of Work Piece (Al, Cu)	0.5-5mm	0.5-5mm	0.5-5mm	0.5-4.5mm	0.5-4.5mm	1-8mm	1-8mm	1-10mm
Thickness of Work Piece (C.S)	0.5-3mm	0.5-3.5mm	0.5-4mm	0.5-4mm	0.5-4mm	1-6mm	1-6mm	1-8mm
Thickness of Work Piece (SS)	0.5-2mm	0.5-2mm	0.5-3mm	0.5-2mm	0.5-3mm	1-4mm	1-4mm	1-6mm
