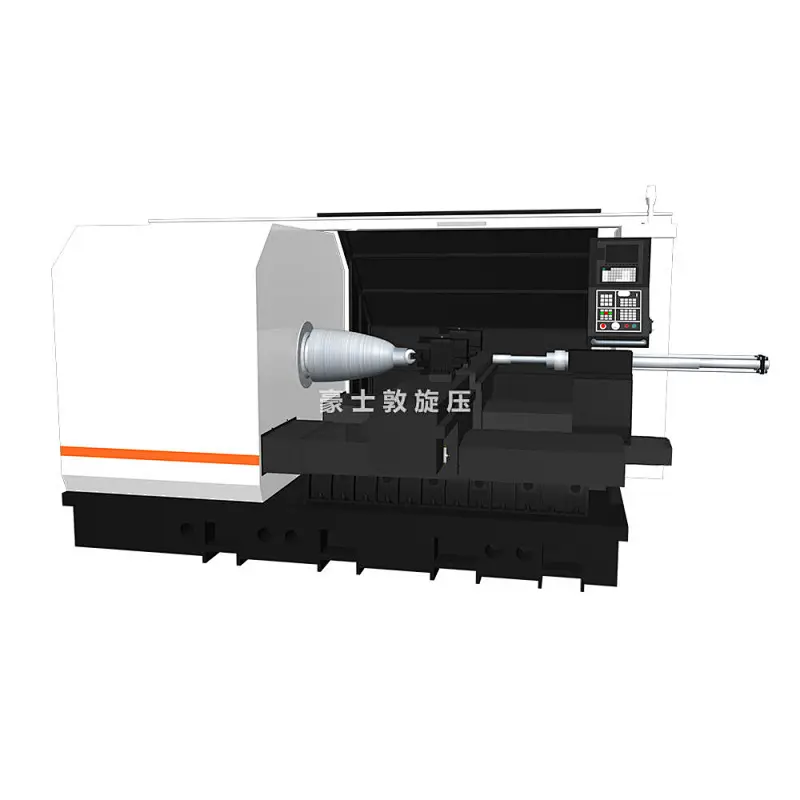

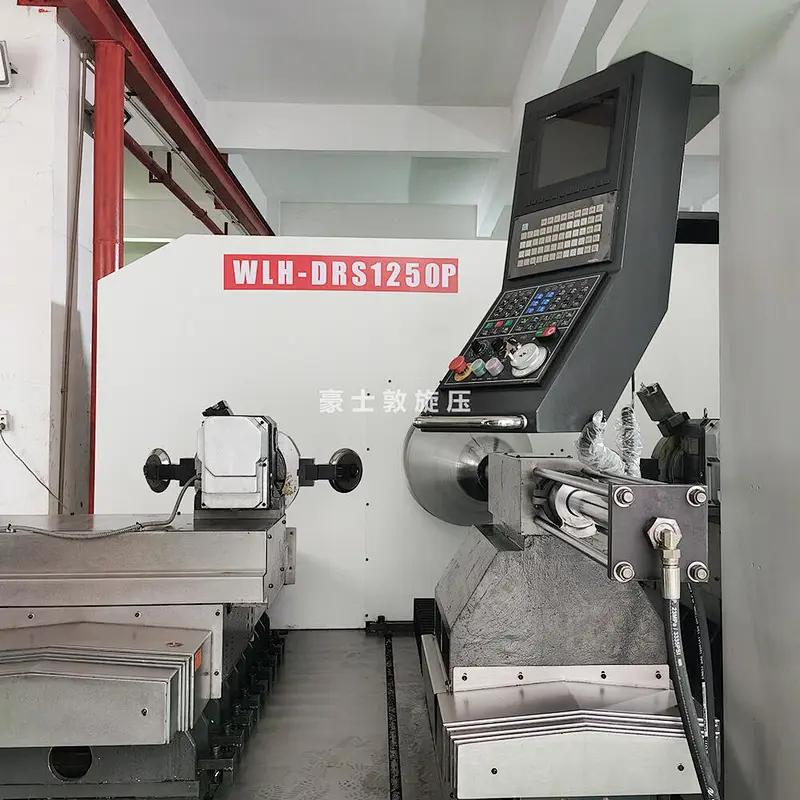

Enhanced High Performance Double Roller CNC Metal Spinning Machine
Enhanced High Performance Double Roller CNC Metal Spinning Machine
Enhanced High Performance Double Roller CNC Metal Spinning Machine
Enhanced High Performance Double Roller CNC Metal Spinning Machine
Enhanced High Performance Double Roller CNC Metal Spinning Machine

Enhanced High Performance Double Roller CNC Metal Spinning Machine

Model NO.
WLH-DRS1250P
Quantity:

Parameter

WLH-DRS650P

WLH-DRS850P

WLH-DRS1050P

WLH-DRS1250P

WLH-DRS1550P

Max. Diameter of Material

750mm

950mm

1150mm

1350mm

1750mm

Main Motor Power

18.5kw servo

22kw servo

27kw servo

35kw servo

45kw servo

X Travel

650mm

800mm

610mm

680mm

500mm

Z Travel

450mm

700mm

780mm

750mm

1000mm

Tailstock Force

25kn

25kn

35kn

50kn

55kn

Travel of Taistock

500mm

500mm

580mm

800mm

1000mm

Amount of Tools

6+6

6+6

6+6

6+6

8/optional

Thickness of Work Piece (Al, Cu)

0.5-6mm

0.5-6mm

0.5-6mm

0.5-6mm

0.5-6mm

Thickness of Work Piece (C.S)

0.5-4mm

0.5-4mm

0.5-4.5mm

0.5-5mm

0.5-5mm

Thickness of Work Piece (SS)

0.5-3mm

0.5-3mm

0.5-3.5mm

0.5-4mm

0.5-4mm

WLH-D P series CNC Metal Spinning Machine(Double Roller) is especially developed to spin lamps, lamps, art wares, kitchenwares and auto fittings. It has many patents issued by the State Intellectual Property Office. This machine is practical, professional and strong. It has high production efficiency and can complete horn, bucket, cone type, parabolic products. It can also process threading, trimming, flanging and rolling at the same machine tool. The machine can spin many materials such as carbon steel, stainless steel, aluminum and copper etc. It has solved the traditional problems such as lack of skilled workers. With advanced digital control, it is easy to operate. The machine can improve the production efficiency, machining accuracy and saving the cost of human resources. It is the ideal processing machine for light, automobile, military, mechanic and other manufacturing industries.
